Name: Hwashi Wl-at-Pm1200 Automatic Sink Rolling Wheel Grinding Machine, Water Tank Welding Production Line
Brand: Guangdong Hwashi Technology inc.
SKU: WL-FS -100K
Price: 225,000.00 USD
Availability: InStock

Casa > produtos > Máquina de soldadura da emenda >

Hwashi Wl-at-Pm1200 Automatic Sink Rolling Wheel Grinding Machine, Water Tank Welding Production Line

automatic sink rolling machine

welding production line equipment

water tank seam welder

Lugar de origem:

China

Marca:

Hwashi

Certificação:

CE,CCC,ISO

Número do modelo:

WL-FS -100K

Contacte-nos

Peça umas citações

Detalhes do produto

Nome do produto:

Máquina de solda de costura de lavatório de cozinha de aço inoxidável

Largura do cinto abrasivo:

Soldadura semiautomática do dissipador

Tamanho:

780x1250x1800mm

Sistema de controle:

Plc

largura de soldagem:

5-20mm

Espessura mínima da solda:

0,2 mm

Tensão:

380V, fase 2, 50/60Hz

Tipo de máquina:

Máquina de solda de resistência

Vida de serviço:

8-10 anos

Peso (kg):

400 kg

Termos do pagamento & do transporte

Quantidade de ordem mínima

Preço

Negociável

Detalhes da embalagem

pacote de madeira digno de mar

Tempo de entrega

7-30 dias úteis após receber seu pagamento

Termos de pagamento

T/t, l/c

Habilidade da fonte

50 conjuntos por mês

PRODUTOS CONEXOS

Vídeo

Stainless Steel Sink Grinding Machine CNC Automatic Sink Edge Polishing Machine

Obtenha o melhor preço

Vídeo

Máquina de Solda/Rolo Robusta e Personalizada para Tambor de Óleo, Radiador de Aquecimento, Combustível de Avião

Obtenha o melhor preço

Vídeo

Hwashi Máquina de solda de costura longitudinal de alta qualidade para tanque de combustível Máquina de solda automática de costura

Obtenha o melhor preço

Vídeo

Máquina automática de soldagem de costura de aço inoxidável CNC para lavatório de cozinha

Obtenha o melhor preço

Contacte-nos

+8613380655800

marketing@hwashi.com

Contato agora

Descrição do produto

Hwashi WL-AT-PM1200 Automatic Sink Rolling Wheel Grinding Machine,Water tank Welding Production Line

Adopt medium frequency inverter power source of welding and large flat platform of locating method. Use the servo motor to drive X axis (locating mould) and Y axis (welding electrode) to operate under the preset procedure of PLC data. According to the stored position of welding spot, the welding product will be located inside the mould and moves horizontally along the X direction. The welding electrode will be designed to move vertically along the Y direction. The welding electrode is able to conduct 360° of rotation under the control of servo motor so it is suitable for welding different angles of products. Suitable for welding the sink within the range of 1600x700x300mm. (customized)

Suitable for welding the sink within the range of 1600x700x300mm. (customized)
Hwashi Wl-at-Pm1200 Automatic Sink Rolling Wheel Grinding Machine, Water Tank Welding Production Line 1

Hwashi Wl-at-Pm1200 Automatic Sink Rolling Wheel Grinding Machine, Water Tank Welding Production Line 1

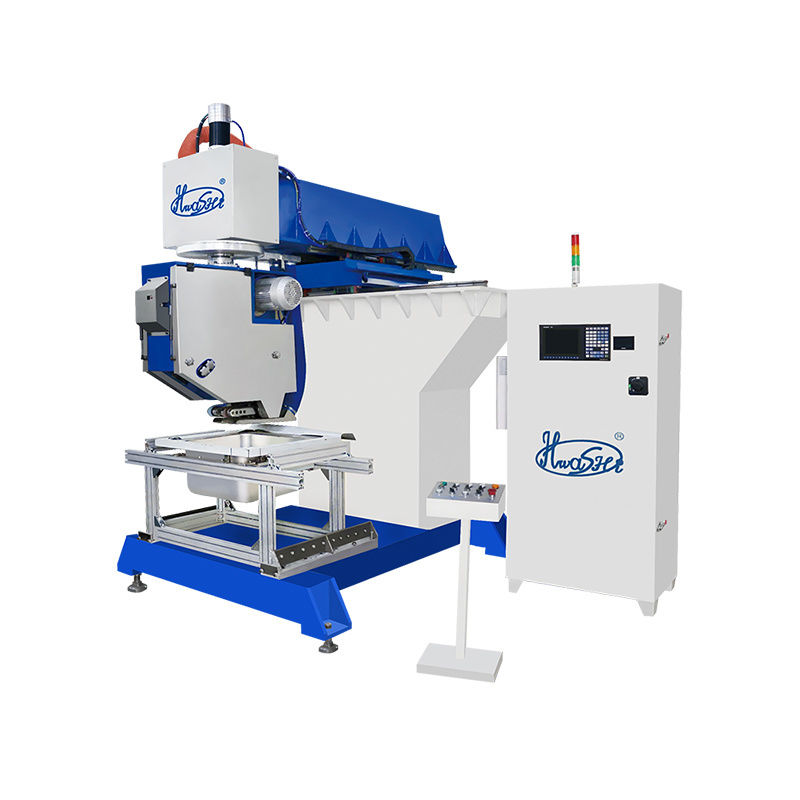

CNC 3 Axis Stainless Steel Sink Seam Welding Machine

CNC 3 Axis Control Stainless Steel Kitchen Sink Seam Welding Machine is a method that uses a pair of roller electrodes instead of the cylindrical electrodes of spot welding, and the welded workpiece moves between the rollers to produce a sealed weld with a molten core overlapping each other to weld the workpiece together. Adopt medium frequency inverter power source of welding and large flat platform of locating method. Use the servo motor to drive X axis (locating mould) and Y axis (welding electrode) to operate under the preset procedure of PLC data. According to the stored position of welding spot, the welding product will be located inside the mould and moves horizontally along the X direction. The welding electrode will be designed to move vertically along the Y direction. The welding electrode is able to conduct 360° of rotation under the control of servo motor so it is suitable for welding different angles of products. Hwashi Wl-at-Pm1200 Automatic Sink Rolling Wheel Grinding Machine, Water Tank Welding Production Line 2

Hwashi Wl-at-Pm1200 Automatic Sink Rolling Wheel Grinding Machine, Water Tank Welding Production Line 2

Hwashi Wl-at-Pm1200 Automatic Sink Rolling Wheel Grinding Machine, Water Tank Welding Production Line 3

Hwashi Wl-at-Pm1200 Automatic Sink Rolling Wheel Grinding Machine, Water Tank Welding Production Line 4

CNC Sink Edges Grinding and Polishing Machine

This is the special designed machine for grinding and polishing the seam after welding. Normally customer will choose to buy these two machines together so as to complete the production of kitchen sink. This CNC sink grinding special machine utilizes abrasive belt polishing principle. The abrasive belt is driven by electric motor to conduct polishing on the edge of the welded sink. There are two processes for polishing. Firstly, use the coarse abrasive belt to grind the redundant cutting edge and the projection welding spots. Then use the fine abrasive belt to conduct polishing treatment. After these two processes can meet the requirement of sink grinding and polishing treatment.
