Name: Hwashi Cap Cover Automatic Spot Welding Machine with Multi Welding Station
Brand: Guangdong Hwashi Technology inc.
SKU: WL-MF-50K
Price: 157,805.00 USD
Availability: InStock

Casa > produtos > Máquina de soldadura do ponto >

Hwashi Cap Cover Automatic Spot Welding Machine with Multi Welding Station

automatic spot welding machine

multi welding station machine

cap cover spot welder

Lugar de origem:

China

Marca:

HWASHI

Certificação:

CE/CCC/ISO

Número do modelo:

WL-MF-50K

Contacte-nos

Peça umas citações

Detalhes do produto

Nome do produto:

Hwashi Cap Cover Máquina automática de soldagem de pontos com estação de soldagem multi

Aplicação:

Capas de solda Cobertura / concha

Tamanho:

1900 x 800 x 1600 mm

Vida de serviço:

8-10 anos

Peso:

600 kg

Garantia:

12 meses

Padrão:

CE/CCC/ISO

Termos do pagamento & do transporte

Quantidade de ordem mínima

1 conjunto

Preço

Negociável

Detalhes da embalagem

pacote de madeira digno de mar

Tempo de entrega

7-30 dias úteis após receber seu pagamento

Termos de pagamento

L/C, , T/T

Habilidade da fonte

50 conjuntos por mês

PRODUTOS CONEXOS

Vídeo

Hwashi 220-380V Stainless Steel Capacitor Discharge Spot Welder Stainless Steel Milk Pot Welding Machine, Pot Handle Spot Welder

Obtenha o melhor preço

Vídeo

HWASHI WL-MF-250K Vertical Type Metal Sheet Medium Frequency Inverter Spot Welding Machine

Obtenha o melhor preço

Vídeo

Hwashi Automatic Steel Wire Ring Making and Welding Machine / Butt Welding Machine

Obtenha o melhor preço

Vídeo

HWASHI Wire Diameter 2-8mm Automatic ring making butt welding machine Circle Ring Bar Pneumatic Resistance Butt Welding Machine

Obtenha o melhor preço

Contacte-nos

+8613380655800

marketing@hwashi.com

Contato agora

Descrição do produto

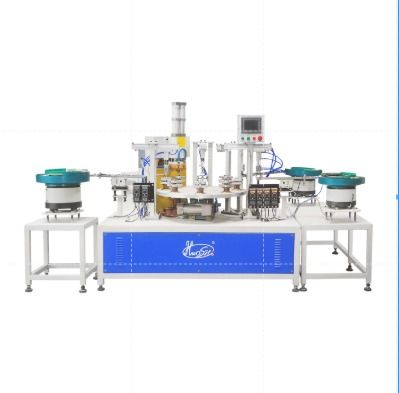

Hwashi Cap Cover Automatic Spot Welding Machine with Multi Welding Station

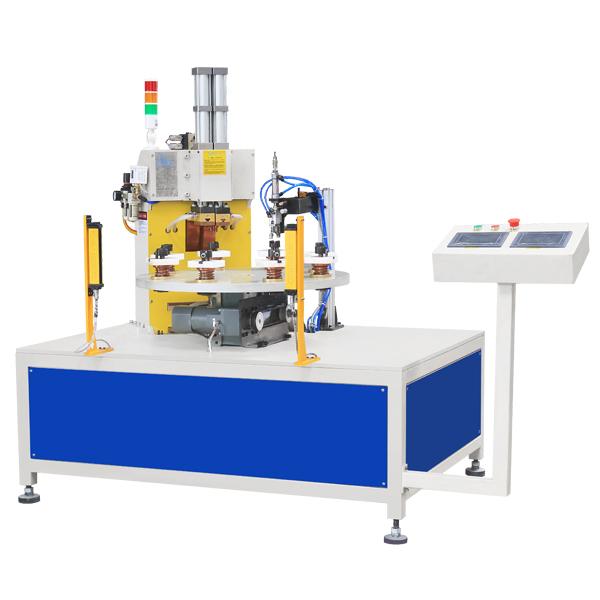

Hwashi Cap Cover Automatic Spot Welding Machine with Multi Welding Station 0

Product description

HWASHI Full Automatic Rotary Table Spot Welding Machine for Nut, Capacitor Welding is designed as automatic welding, automatic rotating and automatic discharging. The machine is of 8 welding positions, so it can achieve cycle working and continuous welding. Moreover, medium frequency inverter power source is adopted with features of high power factor, electricity and energy saving, and it can achieve stable and reliable welding spots. Only need to change the fixtures (welding moulds) then the machine can achieve welding different products. The present design could help you weld product with different dimensions. The main welding part of Multi-station CNC Automatic Rotary Spot Welding Machine is equipped with automatic rotating device. The operator only needs to put the work piece onto the rotary device. He can put 8 work pieces at most for one time. Then start “welding”, the main welding body will conduct welding. After welding the No. 1 work piece, the rotating device will rotate, then the No.2 work piece will be moved to the welding position, cycle process will continue. In the meantime, the welded work piece will be discharged automatically in turn and the operator could keep putting new work piece onto the certain position. In such design, the machine is of fast speed and high efficiency.

Hwashi Cap Cover Automatic Spot Welding Machine with Multi Welding Station 1

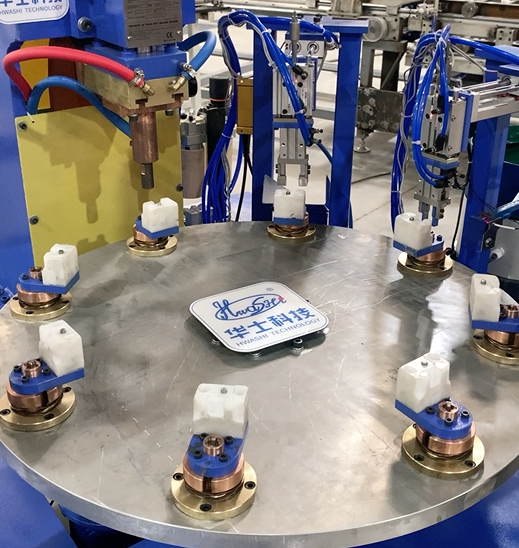

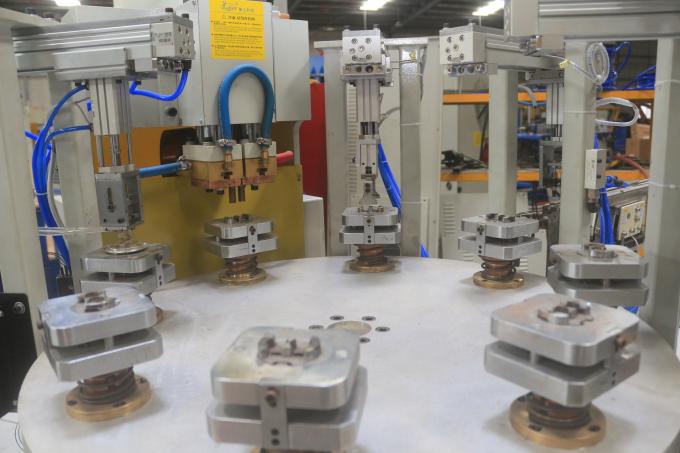

Multi Station Special Designed Fixture

We will design the fixture according to your actual product.

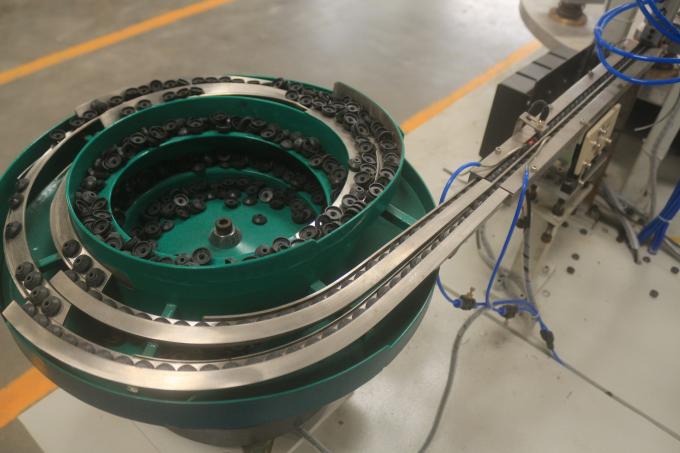

Automatic Vibration Feeding Plate

It will feed the small parts to the fixture automatically.

And the machine will do assembly and welding automatically.

Hwashi Cap Cover Automatic Spot Welding Machine with Multi Welding Station 3

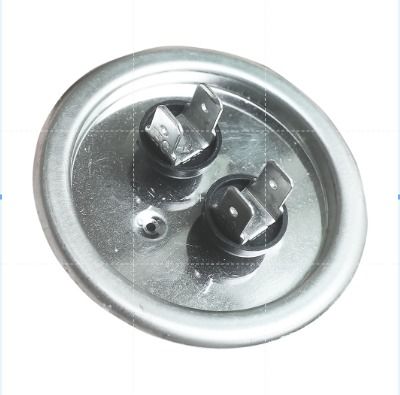

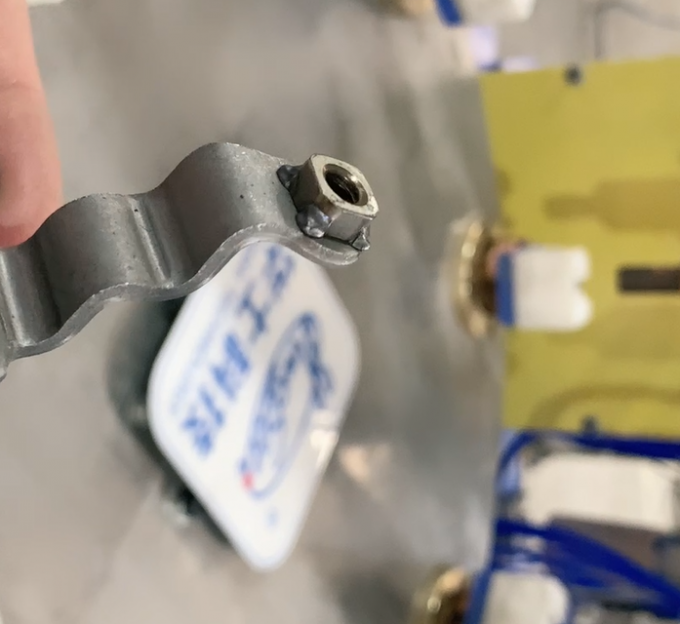

Automatic Loading and Unloading Mechanical Arm Final Product Quality

Technical Parameters of Full Automatic Rotary Table Spot Welding Machine
1	Input Voltage	380V three-phase
2	Input Current	150A
3	Output Voltage	DC11.6V
4	Max Short Circuit Current	32000A
5	Welding Models	32 types
6	Rotary Table Diameter	800mm
7	Rotary Table Material Positions	6-8 positions
8	Rotary Table Rotating Speed	0.5m/sec

Hwashi Cap Cover Automatic Spot Welding Machine with Multi Welding Station 5
