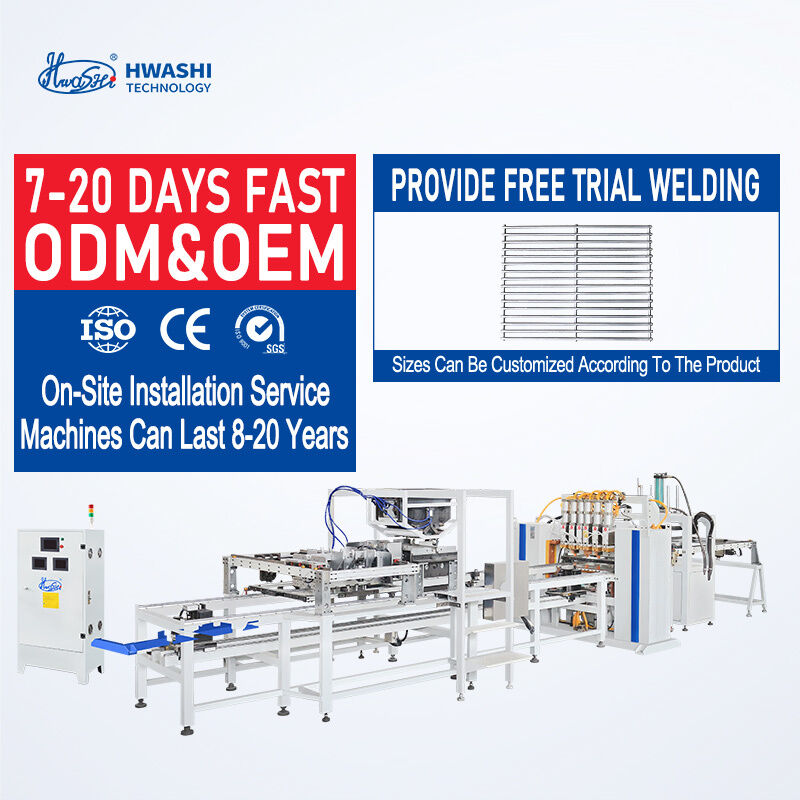

Name: Automatic Wire Mesh Welding Machine with 1 Year Warranty Double-Layer Feeder and Automatic Wire Filling System
Brand: Guangdong Hwashi Technology inc.
SKU: WL-CD-50K
Price: 225,000.00 USD
Availability: InStock

Casa > produtos > Máquina automática de soldar prateleiras de arame >

Automatic Wire Mesh Welding Machine with 1 Year Warranty Double-Layer Feeder and Automatic Wire Filling System

Automatic wire mesh welding machine with warranty

Double-layer feeder welding machine

Automatic wire filling welding system

Lugar de origem:

China

Marca:

HWASHI

Certificação:

CE/CCC/ISO

Número do modelo:

WL-CD-50K

Contacte-nos

Peça umas citações

Detalhes do produto

Nome do produto:

Hwashi Máquina de soldar por tubulação de tubulação para armazenamento de gás

Garantia:

12 meses

Doença:

NOVO

Vida de serviço:

8-10 anos

Força do eléctrodo:

1500kg

Traço do elétrodo:

100mm

calor de saída:

10.000

Termos do pagamento & do transporte

Quantidade de ordem mínima

1 conjunto

Preço

Negociável

Detalhes da embalagem

pacote de madeira digno de mar

Tempo de entrega

7-30 dias úteis após receber seu pagamento

Termos de pagamento

L/C,T/T

Habilidade da fonte

50 conjuntos por mês

PRODUTOS CONEXOS

Vídeo

Soldadora automática de prateleira de arame de alta velocidade com alimentação automática de arame e controlo de soldagem preciso para fabricação de prateleiras

Obtenha o melhor preço

Vídeo

Welding Power Source Three-Phase MF DC Power Supply System for Wire Mesh Welder

Obtenha o melhor preço

Vídeo

Automatic Wire Mesh Welding Machine with 1 Year Warranty Double-Layer Feeder and Automatic Wire Filling System

Obtenha o melhor preço

Vídeo

Automatic Wire Mesh Welding Machine with 1 Year Warranty Double-Layer Feeder and Automatic Wire Filling System

Obtenha o melhor preço

Contacte-nos

+8613380655800

marketing@hwashi.com

Contato agora

Descrição do produto

Welding Power Source Three-Phase MF DC Power Supply System for Wire Mesh Welder

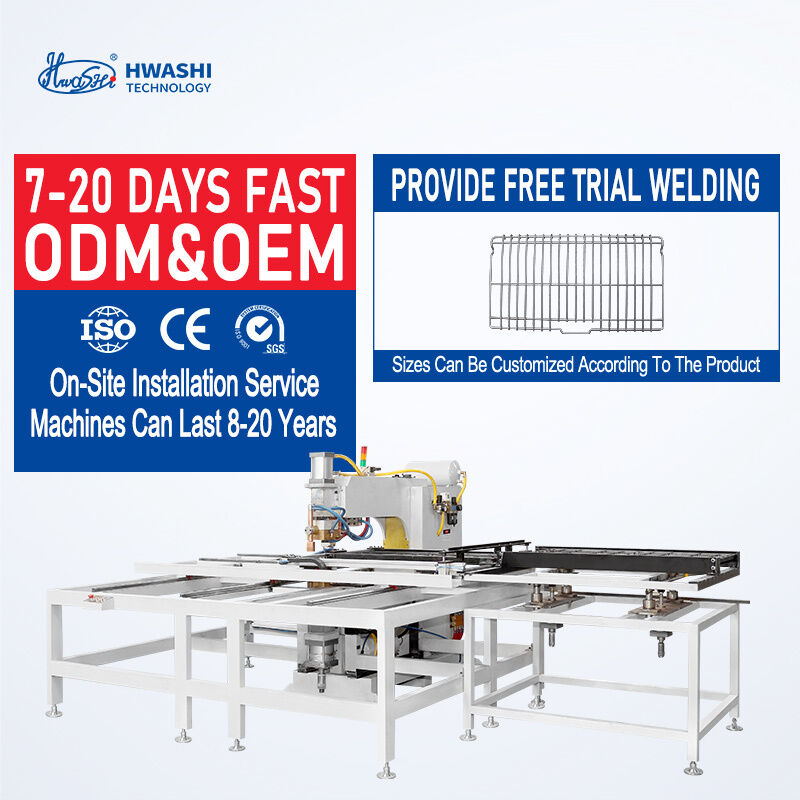

This wire welding machine features a single-head long arm welding structure with automatic X and Y axis workpiece mold movement. By inputting coordinate data of welding position and current, it achieves fully automatic welding. Simply load materials manually and remove finished pieces. Ideal for welding mesh within 1000mm × 1000mm range.

Specifications

Model	WL-TSP-100/150K
Input Power (V/φ)	380/3
Rated Power (KVA)	100/150
Applicable Material	Stainless Steel, Carbon steel, Aluminum, Metal
Electrode Force (KG)	250-400
Welding Thickness (MM)	1-5mm
Warranty	1 year
Mesh Welding Range	1000mm × 1000mm

The Three-Phase MF DC Power Supply System delivers precise, stable DC output through three-phase input, optimized for industrial wire mesh production. Operators can prepare materials for next welding while current work continues, reducing labor costs and maximizing efficiency.

Key Features

Intelligent welding control system with automatic coordinate and current input
Core components: PLC, Engine, Motor for reliable operation
Wire frame bending capability for square shape wire frames
Dual power options: Three-phase MF DC or two-phase AC supply
Automatic wire filling system for continuous operation
Customizable dimensions to match specific product requirements
1200mm effective welding width for large mesh products
Automatic double-layer feeder for improved productivity

Technical Parameters

Product Name	Wire Mesh Welding Machine
Welding Power Source	Three-phase MF DC or two-phase AC power supply
High Speed Wire Processing	5× normal speed for 2mm to 4mm wires
2D Wire Handle Bending	2-6mm wire bending capability
Welding Heads and Fixtures	Custom designed per product drawings
Wire Frame Double T-Butt Machine	Dual-head cross bar welding design

Applications

Ideal for manufacturing wire mesh fences, cages, grids, and shelves. Capable of welding various wire diameters and mesh sizes with 3000mm effective length and 1200mm width. Features full-automatic stainless steel mesh welding with multiple simultaneous welding heads for high-volume production.

Delivery: 7-30 working days after payment
Packaging: Sea-worthy wooden case
Capacity: 50 sets/month
Payment: L/C or T/T negotiable
