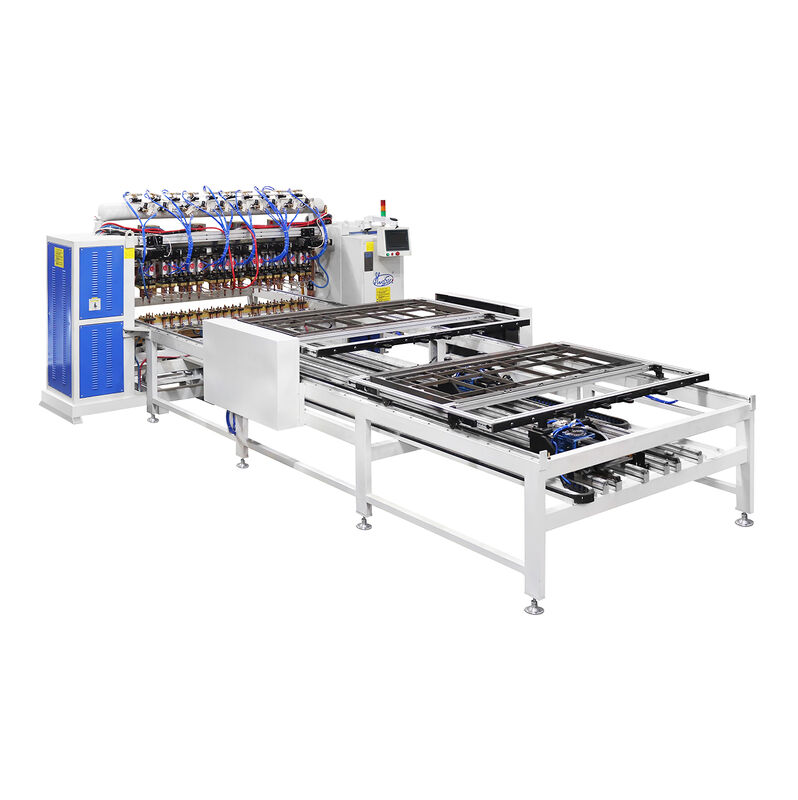

Name: Hwashi PLC Control 380V 2-Phase Door Panel Multi Head Spot Welding Machine with 3+3mm Welding Thickness
Brand: Guangdong Hwashi Technology inc.
SKU: WL-SQ100K
Price: 15000 USD
Availability: InStock

Casa > produtos > Máquina de soldadura de pontos de painéis de portas >

Hwashi PLC Control 380V 2-Phase Door Panel Multi Head Spot Welding Machine with 3+3mm Welding Thickness

PLC Control Door Panel Spot Welding Machine

3+3mm Welding Thickness Multi Head Spot Welding Machine

380V 2-Phase Table Spot Welding Machine

Lugar de origem:

China

Marca:

HWASHI

Certificação:

CE/CCC/ISO

Número do modelo:

WL-SQ100K

Contacte-nos

Peça umas citações

Detalhes do produto

Nome do produto:

380 V, de duas fases

Capacidade nominal:

150 KVAx4

Garantia dos componentes principais:

1 ano

Principais argumentos de venda:

CLP

Espessura máxima:

3+3mm

controlador de sistema:

Classe de crédito

Termos do pagamento & do transporte

Quantidade de ordem mínima

1 CONJUNTO

Preço

US $15000

Detalhes da embalagem

pacote de madeira digno de mar

Tempo de entrega

7-30 dias úteis após receber seu pagamento

Termos de pagamento

T/T,L/C

Habilidade da fonte

50 conjuntos por mês

PRODUTOS CONEXOS

Vídeo

Hwashi PLC Control 380V 2-Phase Door Panel Multi Head Spot Welding Machine with 3+3mm Welding Thickness

Obtenha o melhor preço

Vídeo

Industrial PLC Control Spot Welding Machine for Door Panels with 3+3mm Welding Thickness and 380V 2-Phase Power

Obtenha o melhor preço

Vídeo

Hwashi Door Panel Multi Head Spot Welding Machine

Obtenha o melhor preço

Vídeo

Stainless Steel Welding Machine for Heavy-Duty Structural Reinforcement Applications

Obtenha o melhor preço

Contacte-nos

+8613380655800

marketing@hwashi.com

Contato agora

Descrição do produto

HWASHI Door Panel Multi Head Spot Welding Machine

This advanced multi-head spot welding machine is designed for efficient door panel and sheet metal welding operations. Featuring multiple welding heads with automatic welding capabilities, it offers the flexibility of simultaneous multi-head welding or sequential head operation.

Technical Specifications

The machine features an effective welding width ranging from 1000mm to 2000mm, with a customizable effective welding length of 300mm. It accommodates material thickness from 0.4mm to 1.5mm, making it ideal for various industrial applications.

Working Process

Manually position the workpiece on the work table
Activate the start button for automatic welding of one line of spots
Manually reposition the product for subsequent welding lines
Repeat the process for continuous operation

Key Advantages

Precision welding quality
No specialized equipment requirements
Simultaneous multi-head welding capability
Optimized workspace accessibility
Enhanced production flexibility
Reduced labor costs

Product Features

Flexible Configuration: Adjustable welding head spacing according to your specifications by simply loosening cylinder bolts
Reduced Setup Time: Minimizes electrode adjustment and workbench preparation compared to conventional spot welders
Easy Parameter Setting: Intuitive touch panel interface for welding condition setup with programmable parameter storage
Ergonomic Operation: Automatic pressurization and workpiece placement eliminates manual holding, reducing operator fatigue

Technical Specifications Table

S.N	Items	WL-SF-MF160K	WL-SF-MF120K	WL-SF-MF100K
1	Input Voltage	380V, 3-Phase	380V, 3-Phase	380V, 3-Phase
2	Input Power	160KVA	120KVA	100KVA
3	Max. Welding Current	32000A	30000A	28000A
4	Max. Electrode Force	2.2KN	2.2KN	2.2KN
5	Welding Capacity	3+3mm	2+2mm	1+1mm
6	Welding Schedule	32 Kinds
7	Effective Size Of Welding Platform	2000x300mm (customized)
8	Welding Head Numbers	10 to 20 (as per your drawings)
9	Distance Between Electrodes	100-300mm

Customization Available: All specifications can be tailored to meet your specific production requirements and technical drawings.
