Hwashi Door Panel Multi Head Spot Welding Machine

Hwashi door panel spot welder

multi head spot welding machine

door panel welding machine with warranty

Lugar de origem:

CHINA

Marca:

HWASHI

Certificação:

CE/CCC/ISO

Número do modelo:

WL-SQ100K

Contacte-nos

Peça umas citações

Detalhes do produto

Nome do produto:

380 V, de duas fases

Capacidade nominal:

150 KVAx4

Garantia de componentes principais:

1 ano

Principais pontos de venda:

Plc

Espessura máxima:

3+3mm

controlador de sistema:

Classe de crédito

Termos do pagamento & do transporte

Quantidade de ordem mínima

1 conjunto

Preço

US $15000

Detalhes da embalagem

pacote de madeira digno de mar

Tempo de entrega

7-30 dias úteis após receber seu pagamento

Termos de pagamento

T/t, l/c

Habilidade da fonte

50 conjuntos por mês

PRODUTOS CONEXOS

Vídeo

Stainless Steel Welding Machine for Heavy-Duty Structural Reinforcement Applications

Obtenha o melhor preço

Vídeo

Durable C Type Crank Arm Table Spot Welding Machine For Precision Bending Tasks

Obtenha o melhor preço

Vídeo

Dobramento de Precisão Facilitado com Máquina de Solda de Aço Inoxidável Desempenho de Grau Industrial

Obtenha o melhor preço

Vídeo

Soldadura com ponta de eléctrodo padrão em máquina de soldadura de aço inoxidável para painéis de portas de chapa de metal

Obtenha o melhor preço

Contacte-nos

+8613380655800

marketing@hwashi.com

Contato agora

Descrição do produto

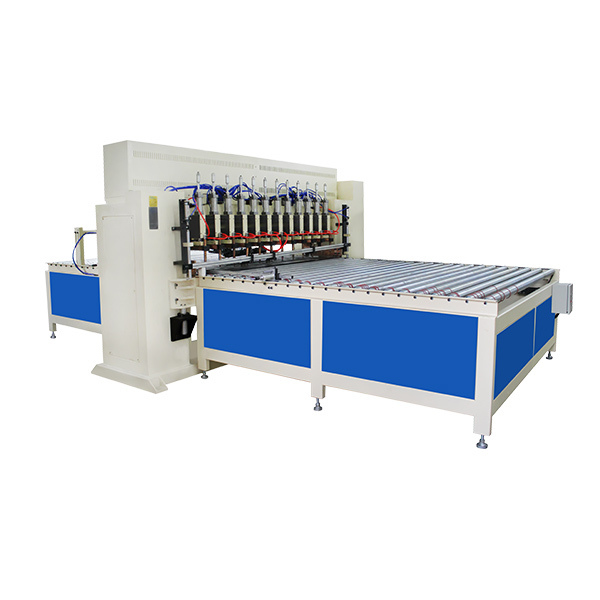

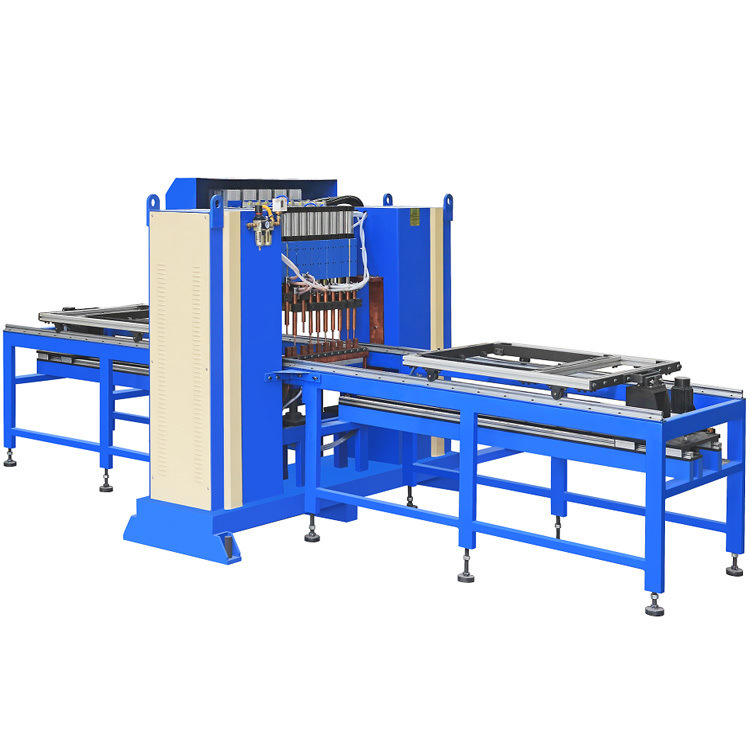

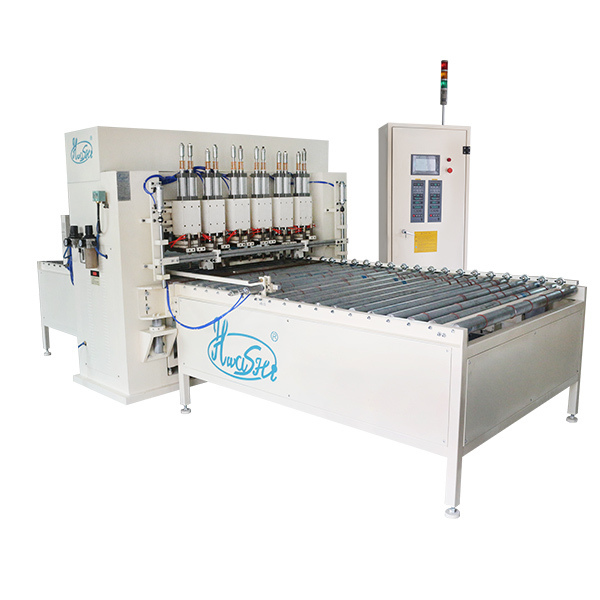

HWASHI Door Panel Multi Head Spot Welding Machine

Name: Hwashi Door Panel Multi Head Spot Welding Machine
Brand: Guangdong Hwashi Technology inc.
SKU: WL-SQ100K
Price: 15000 USD
Availability: InStock

Product Description
This Door Panel Multi Head Spot Welding Machine adopts multiple welding heads with automatic welding. You can choose multi head welding at the same time or each head welding in turns. It is suitable for door panel or sheet metal multi spot welding.

The effective welding width is 1000mm to 2000mm while the effective welding length is 300mm (customized). The material thickness is ranging from 0.4mm to 1.5mm.
Working Process
* Manually put the workpiece onto the table;
* Press the start button, then the machine will conduct welding automatically for one line of spots;
* After welding one line, then manually move the product to another line. Then press the start button again.
* Cycle working

Advantages
* Refined welding
* No need for special equipment
* Multi head welding at the same time
* Maximally easy working area access
* Production flexibility
* Reduced labor costs

Product Features

1. Flexible using: you can adjust the welding head distance as per your drawing request. Only need to loose the bolts on the cylinder then you can move the cylinder from left to right.

2. Reduces set-up time: Unlike conventional stationary spot welders, this system significantly reduces the need for ancillary work such as electrode adjustment and workbench set-up, contributing to a reduction in overall welding man-hours.

4. Comfortable working position: There is no need to hold the workpiece during welding; it can simply be placed on the electrode. Pressurization is also automatic, greatly reducing the physical burden on the operator. The amount of work that can be done per unit time is also dramatically increased.

Table Spot Welding Machine Features

1.Labor saving: With the table spot welder, if the workpiece can be placed on the table-type electrode, it can be welded without the use of auxiliary personnel. The two guns move freely, allowing easy access to the desired welding point by one person.

2.Reduces set-up time: Unlike conventional stationary spot welders, this system significantly reduces the need for ancillary work such as electrode adjustment and workbench set-up, contributing to a reduction in overall welding man-hours.

3.Easy to set welding parameters:The welding conditions can be easily set using the touch panel system.You can save the different welding parameters for different material and thickness. So you can recall the welding program easily. 4.Comfortable working position: There is no need to hold the workpiece during welding; it can simply be placed on the table-type electrode. Pressurization is also automatic, greatly reducing the physical burden on the operator. The amount of work that can be done per unit time is also dramatically increased. Can also weld nuts and screws: Welding can be done efficiently by changing the electrode tip according to the type and size of nut, etc.

S.N	Items	WL-SF-MF160K	WL-SF-MF120K	WL-SF-MF100K
1	Input Voltage	380V,3-Phase	380V,3-Phase	380V,3-Phase
2	Input Power	160KVA	120KVA	100KVA
3	Max.Welding Current	32000A	30000A	28000A
4	Max. Electrode Force	2.2KN	2.2KN	2.2KN
5	Welding Capacity	3+3mm	2+2mm	1+1mm
6	Welding Schedule	32 Kinds
7	Effective Size Of Welding Platform	2000x300mm (customized)
8	Welding Head Numbers	10 to 20 (as per your drawings)
9	Distance Between Electrodes	100-300mm
